Electro Analytical Accessories

Detached Electrode Heads pH Buffer Capsules, Parafilm, D.O. Spare Membrane Kit
Glass Flow-through Cell RS232 to USB Converter
Flow-through Cell Holding Gland BNC extension cable for Electrode
Electrode Holding Glands BNC Socket to Screw Terminal Connector
Reference Bridge Battery Power Pack for ELIT Aqualyser
Reference Isolating Adapter 25 Way D-Sub Plug Connector Kit
Place an Order or Enquiry
Detached Electrode Heads Top
Detached Electrode Head

Detached Electrode Head  Set
These Electrode Heads are to be used with the 8 mm diameter ELIT Ion Selective Electrodes. The Dual Electrode Head is used to form an Electrode Combination of ISE and Reference Electrode for ease of use in the laboratory and field.
Order Code
Specification
Price ex. VAT (GBP)
ELIT 101 Mono Electrode Head with BNC connector 32.00
ELIT 101R Reference Electrode Head with 2mm plug connector 32.00
ELIT 102, 103, 107 Mono Electrode Head with DIN, US, or S7 connector 32.00
ELIT 201 Dual Electrode Head with 1 BNC connector 40.00
ELIT 202, 203, 207 Dual Electrode Head with 1 DIN, US, or S7 connector 45.00
ELIT 301 Triple Electrode Head with 2 BNC connectors 70.00
ELIT 302, 303 Triple Electrode Head with 2 DIN, or US connectors 70.00
ELIT 401 Four Socket Electrode Head 75.00
ELIT 701 Seven Socket Electrode Head 125.00

Glass Flow-through Cell Top
Reference Isolating Adapter
Watertight Top Cap for Sensor insertion, suitable for
all Ø12 mm Standard Probes
.
More details on Flow-through Cell, please click here
  • Body Material: Rugged Glass
  • Path Length: Up to 50 mm
  • Cell Inner Diameter: >12 mm
  • Flow cell volume: 8-12mL
  • Fluid Connectors Type: Barbed hose con.
  • Tubing Required: Ø 5-6 mm soft Silicone tube
Order Code
Specification
Price ex. VAT (GBP)
FT-12G
Glass Flow-through Cell
65.00

Place an Order or Enquiry


Flow-through Cell Holding Gland Top

The HG-20 with O-Ring, Locknut and entry thread Seal, provides watertight holding for Flow-through Cell
<<< Working with Glass Flow-through Cell and Electrode

(Image is for reference only, colour of the product maybe differently)
  • IP Rating: IP68
  • Material: Nylon 66
  • Gland Colour: White
  • Weight: 30 g
  • Minimum Operating Temperature: - 40°C
  • Maximum Operating Temperature: + 100°C
  • Thread Size M32
    o Maximum Holding Diameter 25 mm
    o Minimum Holding Diameter 17 mm


Order Code
Specification
Price ex. VAT (GBP)
HG-20
Flow-through Cell Holding Gland
4.50

Place an Order or Enquiry


Electrode Holding Gland Top

Electrode Glands work with EAI Flow-through System. For more details, please click here

The EG range glands provide watertight holding for Standard electrodes, ELIT 8 mm ISE or Reference electrode, and Temperature sensor. (Image is for reference only, colour of the product maybe differently)

  • IP Rating: IP68
  • Material: Nylon 66
  • Minimum Operating Temperature: - 20°C
  • Maximum Operating Temperature: + 100°C
  • Available Model and Thread Size:
    o EG20: M20, for Electrode Diameter 10 - 14 mm
    o EG16: M16, for Electrode Diameter 6 - 10 mm

    o EG12: M12, for Sensor Diameter 3 - 6.5 mm

Order Code
Specification
Price ex. VAT (GBP)
EG-20
For 12 mm Standard Electrode
3.50
EG-16
For 8 mm ELIT ISE and Ref.
3.00
EG-12
For 3 mm Temperature Sensor
2.50

Place an Order or Enquiry


Reference Bridge Top
Reference Isolating Adapter

This Reference bridge can be used in our Flow-through or Multi Sensor System where multiple electrodes which measure in one vessel and are connected to one instrument without common ground, i.e. multi electrodes are connected to an Isolated Multi-Channel System, or to a PLC, of each electrode is via a standalone Transmitter / Amplifier. (Image is for reference only, colour of the product maybe differently)

When Mulit electrodes are used in one vessel with one reference system, i.e. a combination pH electrode, then the other electrodes can share the same reference system by using the Reference Bridge.

The Reference Bridge's banana-to-banana stackable 2 mm banana plugs have been machined from brass and gold plated. They also have a moveable multi-lam contact cage spring for tight fit.

  • Body: Brass
  • Spring: Gold plated
  • Insulation: ABS
  • Lead: PVC covered
  • Lead width: 0.5²
  • Plug length: 26.5 mm
  • Voltage: 30 V AC - 60 V DC
  • Maximum current rating: 10 A
  • Standard length: 100 mm
Order Code
Specification
Price ex. VAT (GBP)
RB-2mm
Reference Bridge Cable
3.50

Place an Order or Enquiry


Reference Isolating Adapter Top

Reference Isolating Adapter

Reference Isolating Adapter work with Electrode Amplifier

This Reference Isolating Adapter can be used in our Multi-Sensor System where multiple combination electrodes which measure in one vessel and are connected to one instrument with a common ground, then the reference systems work parallel, which can lead to electrical problems.

Combination Electrodes connect the measuring system to the central main wire of a co-axial cable and the reference system to the screen/shield of the co-axial cable. The cable ends usually in a BNC plug.

The Reference Isolating Adapter allows disconnecting the reference system of an electrode. Connect the Reference Isolating Adapter to the input, where the ground should not be connected to the reference system of the electrode and connect the electrode to the adapter. The adapter makes only the central main wire connection, the screen/shield connection is broken/isolated.

Please be aware that in this case the calibration of the electrode where the reference system is deactivated must be done while the electrode where the reference system is active is also immersed into the calibrating solution.


Order Code
Specification
Price ex. VAT (GBP)
BNC-RIA-10
Reference Isolating Adapter
18.00

Place an Order or Enquiry


BNC Socket to Screw Terminal Connector
Top

BNC Socket to Screw Terminal Connector

This Connector converts the Electrode Amplifier BNC output to 2 x screw Terminal connector
(Image is for reference only, colour of the product maybe differently)

  • BNC socket to 2 x screw terminal connector
  • Coaxial Termination: Screw
  • Connector Body Style: Straight Jack
  • Connector Mounting: Cable Mount
  • Connector Type: BNC Coaxial
  • Contact Material: Brass
  • Contact Plating: Nickel Plated Contacts
Order Code
Specification
Price ex. VAT (GBP)
BNC-ST
BNC Socket to Screw Terminal Connector
2.50

25 Way D-Sub Plug Connector Kit
Top

This Connector Kit connects the output of the 4-Channel Electrode Transmitter Amplifier to the Data Loggers, Data Acquisition Systems, Displays, Controllers and other Instruments. For wiring information, please refer to the product datasheet or contact us.

(Image is for reference only, colour of the product maybe differently)

  • Number of Contacts: 25
  • Kit Type: D-Sub Plug Connector Kit
  • Housing Material: Plastic or Metal
  • Body Orientation : straight or 45 °
  • Kit Contents: Hood and Inserts
Order Code
Specification
Price ex. VAT (GBP)
SD25WP
25 Way D-Sub Plug Connector Kit
5.50

Battery Power Pack Top
Battery Power Pack The Battery Power Pack ELIT 9809 enables the use of ELIT Aqualysers where no mains power is available.

12 hours charging with the same Power Supply as supplied with the Aqualyser enables 8 hours continuous operation of the Aqualyser.

The Battery Power Pack is supplied with a set of Velcro Pads which allow the temporary fixing of the Battery Power Pack to the Aqualyser.

Order Code
Specification
Price ex. VAT (GBP)
ELIT 9809
Battery Power Pack
50.00

BNC extension cable for Electrode Top
BNC extension cable for Electrode

Please be aware that the original Sensor Signals are usually very weak (mV or mA). Transmitting these weak signals over distances of more than a few metres would reduce the signal level, which would result in false readings. To avoid these problems, the weak original sensor signals have to be converted into stronger signals, which can be transmitted over longer distances. More details please see Electrode Transmitters and Amplifiers

The standard electrode cable length is normal 1 metre with BNC plug. These high quality BNC extension cable enables the electrode to measure in a further distance.


Order Code
Specification
Price ex. VAT (GBP)
BNC-CL2
BNC extension cable for Electrode, 2 meters
Contact us
BNC-CL3
BNC extension cable for Electrode, 3 meters
Contact us
BNC-CL4
BNC extension cable for Electrode, 3 meters
Contact us

Place an Order or Enquiry


RS232 to USB Converter Top

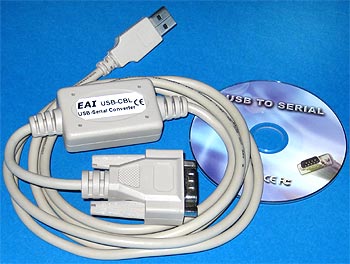

RS232 to USB Converter

The RS232 to USB Converter is integrated into the Serial Data Cable and enables our Computer-based instruments with an RS232 serial port to connect to computers with USB port.

Made with premium FTDI FT232R chipset, powerful signal strength at Mega baud rates. Maximum OS driver compatibility for MS Windows XP and Windows 7/8/8.1.

Order Code
Specification
Price ex. VAT (GBP)
RS232UC
RS232 to USB Converter
15.00

Parafilm
Top
Parafilm

This stretchable Parafilm from Pechiney is used for sealing liquid-filled protection caps to the electrode body.

For this purpose only small stripes of parafilm are required: approximately 15 x 60 mm.

While wrapping the parafilm it should be stretched to about 3 times its length. The limit of stretching can be felt clearly.


Order Code
Specification
Price ex. VAT (GBP)
M-PARA-40
Roll of 100 mm x 40 m
Contact us
Use of Parafilm


Buffer Capsules Top
pH Buffer

pH Electrode Calibration Buffers:

pHydrion Buffer Capsules prepare a Standard solution with known pH Value Certified to ?± 0.02 pH units at 25°C

pHydrion Buffer Capsules have a shelf life of five years.
To prepare the Buffer Standard, empty the contents of the pHydrion pH Buffer Capsule into 100ml de-ionized or distilled water.

When stored at room temperature, in clean airtight bottles, prepared solutions will last for three weeks.


Order Code
Specification
Price ex VAT (GBP)
PHB-MX-3
Box with 1 Vials of pH=4, 1 Vials of pH=7and 1 Vials of pH=10 Capsules
Contact us
PHB-4-1 Vial with 10 of pH=4 Capsules
PHB-7-1 Vial with 10 of pH=7 Capsules
PHB-10-1 Vial with 10 of pH=10 Capsules
Top
